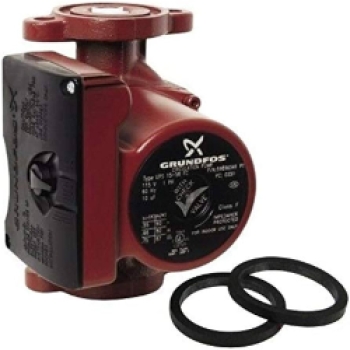

0.4HP 115V 1PH 60Hz 5.25" x 4.19" x 6.5" 0.75A 17GPM 145PSI Cast Iron 3-Speed Circulating Pump

Manufacturer Name: Grundfos Pumps Corporation

VAMAC PN: 128133

Min. Order Qty: 1

Qty. Interval: 1

All branches

EA Add to cart

Description
Specifications
Features
Resources
Package Information

Circulating Pump; Type 3-Speed; End Connection Flanged x Flanged; Overall Dimensions 5.25 Inch Length x 4.19 Inch Width x 6.5 Inch Height; Flow Rate 0 to 17 GPM; Discharge Head 0 to 19 Foot; Casing Material Cast Iron; Shaft Material Aluminum Oxide Ceramic; Impeller Material Polyethersulfone Composite; Impeller Design Closed; Warranty 3-Year; Power Rating 0.04 HP; Input Supply Rating 115 Volt at 60 Hertz 1-Phase 0.75 Amp; Temperature Rating 104 Deg F; Pressure Rating 145 PSI; Motor Type 2-Pole, Asynchronous, Permanent Split Capacitor; Inclusions/Features Check Valve, Ceramic Shaft and Radial Bearings, Carbon Axial Bearing, Stainless Steel Rotor Can and Bearing Plate; Exclusions Shaft Seal; Application Hydronic Heating, Solar Heating, Heat Recovery/Heat Pump, Ground-Source Heat Pump, Radiant Floor Heating; Applicable Standard UL, CSA; Port to Port Length 6-1/2 Inch

Applicable Standard	:	UL, CSA
Application	:	Hydronic Heating, Solar Heating, Heat Recovery/Heat Pump, Ground-Source Heat Pump, Radiant Floor Heating
Casing Material	:	Cast Iron
Discharge Head	:	0 to 19 Foot
End Connection	:	Flanged x Flanged
Exclusions	:	Shaft Seal
Flow Rate	:	0 to 17 GPM
Impeller Design	:	Closed
Impeller Material	:	Polyethersulfone Composite
Inclusions/Features	:	Check Valve, Ceramic Shaft and Radial Bearings, Carbon Axial Bearing, Stainless Steel Rotor Can and Bearing Plate
Input Supply Rating	:	115 Volt at 60 Hertz 1-Phase 0.75 Amp
Motor Type	:	2-Pole, Asynchronous, Permanent Split Capacitor
Overall Dimensions	:	5.25 Inch Length x 4.19 Inch Width x 6.5 Inch Height
Power Rating	:	0.04 HP
Pressure Rating	:	145 PSI
Shaft Material	:	Aluminum Oxide Ceramic
Temperature Rating	:	104 Deg F
Type	:	3-Speed
Warranty	:	3-Year
