511-46-31

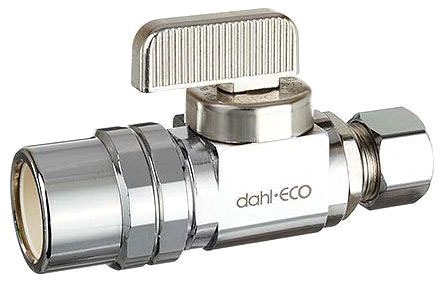

1/2" x 3/8" Female CPVC x Comp 250PSI Lead Free Chrome Plated Brass 1/4 Turn Handle Straight Supply Stop Valve

Manufacturer Name: Dahl Brothers Canada Limited
VAMAC PN: 184231
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Supply Stop Valve; Type Straight; Actuation Type 1/4 Turn Handle; Nominal Size 1/2 Inch x 3/8 Inch; End Connection Female CPVC x Compression; Body Material Brass; Handle Material Plated; Temperature Rating 250 Deg F; Pressure Rating 250 PSI; Inclusions/Features EPDM O-Ring, Compression Nut; Application Plumbing and Heating System; Applicable Standard CSA (Canada and US), NSF/ANSI 61-G, UPC; Lead-Free; Finish Chrome Plated

    Actuation Type      :      1/4 Turn Handle
    Applicable Standard      :      CSA (Canada and US), NSF/ANSI 61-G, UPC
    Application      :      Plumbing and Heating System
    Body Material      :      Brass
    End Connection      :      Female CPVC x Compression
    Handle Material      :      Plated
    Inclusions/Features      :      EPDM O-Ring, Compression Nut
    Nominal Size      :      1/2 Inch x 3/8 Inch
    Pressure Rating      :      250 PSI
    Temperature Rating      :      250 Deg F
    Type      :      Straight
  • Lead-Free
  • Compact Design
  • Quick 1/4 Turn ON/OFF
  • Tamper Resistant Operation Available
  • Package Weight      :      0.595
    Package Weight Uom      :      Pound
    Package Quantity      :      144
    Pack Desc      :      Case
